Retrocomputing and Python: import turtle

My first experience with something related to programming was back in middle school. From time to time, our Math-and-Science substitute teacher used to walk us to the computer room, which was full of shiny Commodore 64 machines, where we had a lot of fun (sort of) with a graphic tool called turtle. What we were trying to do was simply to give a list of instructions to a turtle-shaped cursor, so it could move on the screen and draw some colourful shapes.

Back in those days, we didn’t even realise that we were doing something programming-related, we simply thought we were skipping Math for one day. Fast-forward a few years later, I found out about Logo, its value as educational programming language and Turtle graphics as one of Logo’s key features.

Given the festive spirit of these days, I thought I’d give a shot at the turtle package, part of the Python standard library ;)

Quick Intro on Turtle Graphics

Python has its own implementation of the turtle as part of the standard library (see documentation here). It uses the tkinter module for the underlying graphics, so it has to be run with a version of Python with Tk support.

If you’ve never heard of Turtle Graphics, these are some of the core concepts:

  • The turtle has a position (x, y coordinates) and an orientation
  • The orientation can be changed with right/left commands, e.g. right(90) will rotate 90 degrees clockwise
  • The position can be changed with forward/backward commands, or by setting the coordinates explicitly
  • The turtle is also called pen: when the pen is down, moving the turtle will draw a line

import turtle

The starting point is simply to import the turtle module. A turtle program will have a turtle.Screen object as a drawing canvas, and a turtle.Turtle object as a pen.

Let’s consider this first example:

import turtle

if __name__ == '__main__':
    win = turtle.Screen()

    turt = turtle.Turtle()
    turt.forward(100)
    turt.left(90)
    turt.forward(30)
    turt.color("red")
    turt.forward(30)

    win.mainloop()

This will produce the following:

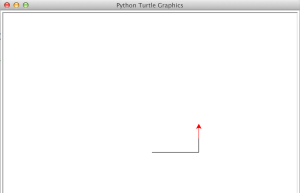

Turtle Example

The turtle is initially oriented towards the right-hand side of the screen, i.e. towards 3 o’clock. Moving forward will produce the initial black line. As you can see the colour can be changed later using the turtle.color() function.

Festive Turtle

This paragraph shows a more complex example. The full code is available on GitHub

import turtle

if __name__ == '__main__':
    wn = turtle.Screen()

    my_turtle = turtle.Turtle()

    # start drawing the tree
    my_turtle.color("darkgreen")
    my_turtle.pensize(5)
    my_turtle.begin_fill()
    # the right half of the tree
    my_turtle.forward(100)
    my_turtle.left(150)
    my_turtle.forward(90)
    my_turtle.right(150)
    my_turtle.forward(60)
    my_turtle.left(150)
    my_turtle.forward(60)
    my_turtle.right(150)
    my_turtle.forward(40)
    my_turtle.left(150)
    my_turtle.forward(100)
    # the left half of the tree
    my_turtle.left(60)
    my_turtle.forward(100)
    my_turtle.left(150)
    my_turtle.forward(40)
    my_turtle.right(150)
    my_turtle.forward(60)
    my_turtle.left(150)
    my_turtle.forward(60)
    my_turtle.right(150)
    my_turtle.forward(90)
    my_turtle.left(150)
    my_turtle.forward(133)

    my_turtle.end_fill()
    # the trunk
    my_turtle.color("brown")
    my_turtle.pensize(1)
    my_turtle.begin_fill()

    my_turtle.right(90)
    my_turtle.forward(70)
    my_turtle.right(90)
    my_turtle.forward(33)
    my_turtle.right(90)
    my_turtle.forward(70)

    my_turtle.end_fill()

    # the star, see similar example on python.org
    my_turtle.penup()
    my_turtle.setpos(-17, 110)
    my_turtle.color("gold")
    my_turtle.begin_fill()
    my_turtle.pendown()
    for _ in range(36):
        my_turtle.forward(40)
        my_turtle.left(170)
    my_turtle.end_fill()


    # some colourful balls
    def ball(trt, x, y, size=10, colour="red"):
        trt.penup()
        trt.setpos(x, y)
        trt.color(colour)
        trt.begin_fill()
        trt.pendown()
        trt.circle(size)
        trt.end_fill()

    ball(my_turtle, 95, -5)
    ball(my_turtle, -110, -5)
    ball(my_turtle, 80, 40, size=7, colour="gold")
    ball(my_turtle, -98, 40, size=7, colour="gold")
    ball(my_turtle, 70, 70, size=5)
    ball(my_turtle, -93, 70, size=5)


    my_turtle.hideturtle()
    wn.mainloop()

And this is the output:

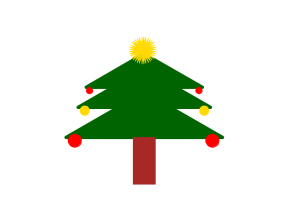

Turtle XMas Tree

Summary

Turtle graphics is a great educational tool to introduce kids to programming. Grown-ups can use it as well, for a bit of nostalgic fun ;)

The full code for the demo is available on GitHub

@MarcoBonzanini

Published by

Marco

Data Scientist
